"Full Surface coating, BN PackageCoat SXC30AP Professional for Fujifilm Jet Press 750S

Japanese / English

Main Features - BN PackageCoat SXC30AP Professional for Fujifilm Jet Press 750S

Main Feature Product Spec. Brochure

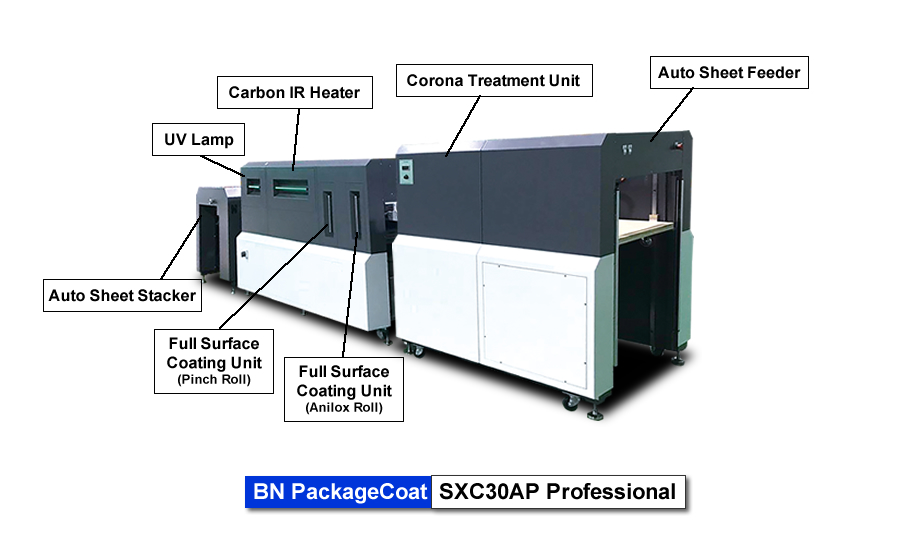

Luxury, High Performance, and High Productivity, Full Surface Coating System for Package Printing

BN PackageCoat SXC30AP Professional is UV/Aqueous varnish coating system suitable for package printing by Fujifilm Jet Press 750S.

  • Full surface coating system with 2 coating stations - Anilox Roll and Pinch Roll.
  • Corona treatment as standard function.
  • For UV varnish and Aqueous varnish coating.
  • Max. speed 6500 sheets/hour, 70 m/min.
  • Paper thickness 120 gsm - 750 gsm

    • BN PackageCoat SXC30AP Professional, for UV/Water-based varnish coating, Full surface coating with 2 stations - Anilox Roll and Pinch Roll -, Corona treatment, B2 size paper in landscape feeding, for package printing by Fujifilm Jet Press 750S.

    Easy Access for Maintenance

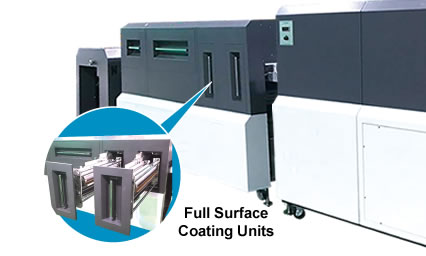

    BN PackageCoat SXC30AP Professional for package priting by Fujifilm Jet Press 750S, Easy Access to rollers for maintenanceRollers in the full surface coating units can be easily slided out. It's very helpful for daily maintenance.

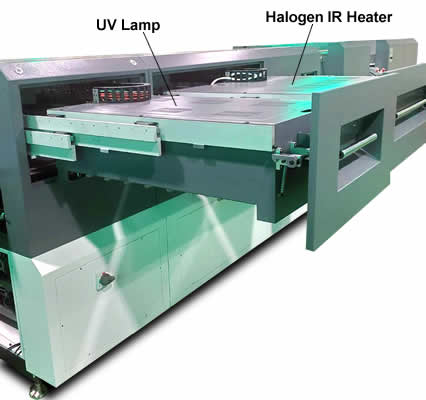

    BN PackageCoat SXC30AP Professional for package printing by Fujifilm Jet Press 750S, Easy Access to UV Lamp and Halogen IR Heater for maintenance
    Halogen IR Heater and UV Lamp unit also can be easily slided out.


    Auto Sheet Stacker, Space Saving

    BN PackageCoat SXC30AP Professional for package printing by Fujifilm Jet Press 750S, Auto Sheet StackerStacked paper can be pulled out from the sheet stacker in orthogonal direction to the paper feed direction, for space saving.


    Inline Connection with Jet Press 750S (option)

    BN PackageCoat SXC30AP Professional for package printing by Fujifilm Jet Press 750S, In-Line connection with printerBN PackageCoat SXC30AP Professional can be IN-LINE connected with Fujifilm Jet Press 750S, using optional Conveyor Bridge.


    Feeder and Stacker for B1 Size Paper (option)

    BN PackageCoat SXC30AP Professional, B1 size paper sheet feeder and stacker (option)BN PackageCoat SXC30AP Professional has Auto Sheet Feeder and Auto Sheet Stacker for B1 size paper (portrait feeding) as option.


    ↑
