Product Specifications - BN MultiCoat DX25P/Corona for Konica Minolta AccurioJet KM-1e
| Main Feature | Product Spec. | Video | Brochure |
| Model Name | BN MultiCoat DX25P/Corona for Konica Minolta AccurioJet KM-1e |

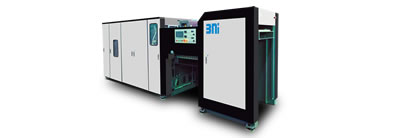

| Appearance |  |
| Coating Technology | Sheet Fed Flood Coating for UV / Water-based Varnish
IR Heater & UV Cure System Duplex Coating |
| Coating Thickness | 6 - 14 microns |
| Coating Paper Size | Max. 750mm x 585mm (Konica Minolta AccurioJet KM-1e: 750mm X 585mm) |
| Coating Width | Maxmum 762mm |
| Paper Thickness | 90 - 450gsm
|
| Coating Speed | Max. 3,600 sheets / hour
*Speed is variable depending on the paper thickness, media and/or vanish. |
| Feeder Stacking Height | 850 mm |
| Stacker Stacking Height | 850 mm |
| Power Supply | 200-415V, 50/60Hz, Three Phase |
| Power Consumption | 38KW |
| Dimensions(m) | 4.90m(L) x 1.25m(W) x 1.81m(H) |
| Weight | Approx. 3,700kg |
